euLINK: smart building "translator"

euLINK

The euLINK gateway is a hardware-based communication interface between FIBARO smart building system and infrastructure devices, e.g. air conditioning, heating, ventilation, DALI*) lighting, roller shutters, audio/video equipment, etc.

It can also be used as a universal recorder for data gathered from sensors, meters and gauges of various physical values. It is also useful as a protocol converter, e.g. TCP/IP ↔ RS-232/RS-485 or MODBUS TCP ↔ MODBUS RTU.

The euLINK gateway has modular design and can be upgraded with various peripheral modules (e.g. DALI ports) connected to the SPI ports or to I2C ports of the central unit. There is also an euLINK Lite version with half the RAM memory (1 GB) and a slightly slower processor.

*) DALI is a registered trademark of DIIA.

euLINK

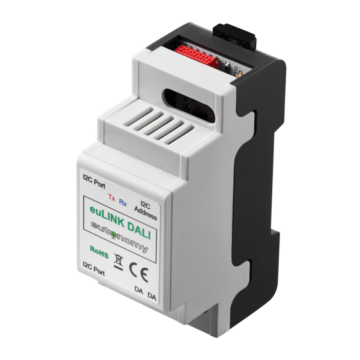

euLINK DALI port

The euLINK DALI port can only work with euLINK or euLINK Lite.

Up to 4 euLINK DALI ports can be connected to 1 euLINK. For technical and performance reasons we recommend that up to 2 euLINK DALI ports should be connected to 1 euLINK Lite.

single euLINK DALI port can control up to 64 DALI lights. Hence, one euLINK with the maximum number of 4 euLINK DALI ports can control maximum 256 DALI lights.

Similarilty, 1 euLINK Lite with 2 euLINK DALI ports can control up to 128 DALI lights.

USING euLINK IS SIMPLY SMART. AS SMART AS YOUR INSTALLATION DESIGN CAN GET:

TRULY SMART & INTEGRATED BUILDING

With euLINK the FIBARO smart building solution is now able to combine the most important management functions of an intelligent building: lights (including DALI), AC, heating, ventilation, recuperation, weather stations, security alarm and many other. This makes a safe, “green”, and energy-efficient living environment. One app to control (almost) everything.

UNIQUE YET UNIVERSAL

The euLINK is effectively a common communication platform for all building installations and objects operating in the IoT (Internet of Things) space. It can combine electrical, teletechnical, HVAC (heating, ventilation, air conditioning), alarm installations, sound systems, monitoring, building security, metering and all others operations in a building. It is THE ONLY SOLUTION on the market dedicated to the FIBARO solution platform providing such a wide functionality.

EASE OF USE: SIMPLE INTERFACE & INFRASTRUCTURE MANAGEMENT

The configuration and system management of euLINK is performed via any web browser, eg Google Chrome, FireFox, Safari, etc. It is a convenient solution – you can install the system from anywhere, depending on your preferences and needs.

FIGHTING "BABEL TOWER" BY APPLYING COMMON LANGUAGE

With euLINK we are bringing back the universal language of communication been the “languages” from different manufacturers of the infrastructure devices.

Intuitive Installation - No programming skills required

Yes, no programming skills are needed to install and run the infrastructure devices via the euLINK gateway. Once a device template is selected and configured, the appropriate euLINK driver sends a sequence of API commands, which automatically creates a virtual device – ready to communicate with the euLINK and the related infrastructure device. New infrastructure devices become visible in your FIBARO app (on a smartphone, tablet, computer) and are immediately available for creating scenes.

Community Support

Enthusiasts and Installers can use our FORUM to ask questions, receive answers, help other members and participate in discussion threads of interest.

Introducing euLINK

euLINK models

euLINK: Raspberry Pi 4B

CPU 1.5Ghz, RAM 2 GB

euFIX S213

euLINK Lite: Raspberry Pi 3B+

CPU 1.4Ghz, RAM 1GB

euFIX S222

Technical details

Supply voltage: 100‑240 V AC, 50-60 Hz
Power consumption: up to 14 W

Protections:

Slow-blow fuse 2.0 A / 250 V, polyfuse PTC 2.0 A / 5 V

Enclosure dimensions: 107 x 90 x 58 mm
Width in modules: 6 TE modules on DIN rail
IP rating: IP20
Operating temperature: 0°C to +40°C
Relative humidity: ≤90%, no condensation

Hardware platform

Microcomputer:

euLINK: Raspberry Pi 4B

euLINK Lite: Raspberry Pi 3B+

Operating system: Linux Ubuntu
Memory card: microSD 16 GB HC I Class 10
Display: 1.54” OLED with 2 buttons for basic diagnostics
Serial transmission: Built-in RS-485 port with a 120 Ω termination (software-activated), galvanic separation up to 1 kV
LAN port: Ethernet 10/100/1000 Mbps
Wireless transmission WiFi 802.11b/g/n/ac
USB ports:

euLINK: 2xUSB 2.0, 2xUSB 3.0

euLINK Lite: 4xUSB 2.0

Communication with extension modules: External SPI and I2C bus ports, 1-Wire port
Power supply outlet for extensions DC 12 V / 1 W, 5 V / 1 W
